KSB Etaline Series

Our Price: POA

Please note: we are not able to advertise our market leading discounts on these ranges, please contact us for your best price.



Main applications

• Biogas
• Breweries
• Building services
• Food and beverages
• HVAC
• Heat transfer, Cooling circuits



Technical data

Q max 700.0 m³/h

H max 95.0 m



Design

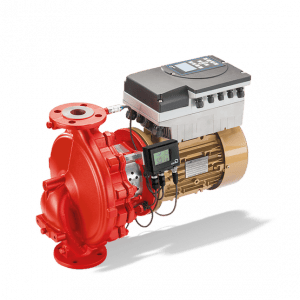

Single-stage volute casing pump in in-line design, with magnetless KSB SuPremE motor of efficiency class IE4/IE5 and PumpDrive variable speed system; pump shaft and motor shaft are rigidly connected. With KSB SuPremE, a magnetless synchronous reluctance motor of efficiency class IE4/IE5 to IEC TS 60034-30-2:2016, for operation with the KSB PumpDrive 2 or KSB PumpDrive 2 Eco variable speed system without rotor position sensors. Motor mounting points in accordance with EN 50347, envelope dimensions in accordance with DIN V 42673 (07-2011). ATEX-compliant version available.



Application

Hot water heating, cooling circuits, air-conditioning, water supply systems, service water supply systems, industrial recirculation systems
